SPORTS SURFACING SYSTEMS (outdoors) PRODUCTS BSG
TETRAPUR ENZ II
TETRAPUR ENZ II

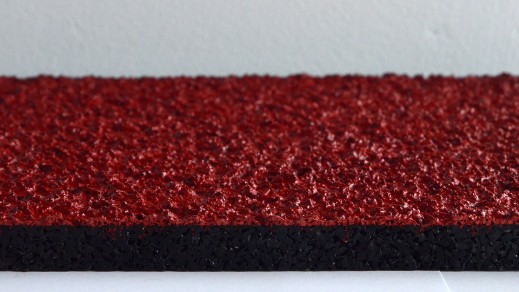

Polyurethane two-layer structural spray coating, flexible, seamless, water permeable (impermeable Type N), machine installed “in situ” (directly at the construction site). Sports shoes with spikes are allowed.
Total thickness of the surface: 13 mm
The colour of surface at customer`s request.
The colour of surface at customer`s request.
Applications:
- athletic tracks
- multi-purpose sports fields
- outdoor sports venues and recreation centers
The surface meets:
- technical parameters according to PN-EN 14877:2014 standard
- IAAF certificate number S-06-0066
- technical recommendation RT ITB-1120/2012
- hygienic attestation issued by the National Institute of Hygiene
- tests on contents of trace elements of heavy metals

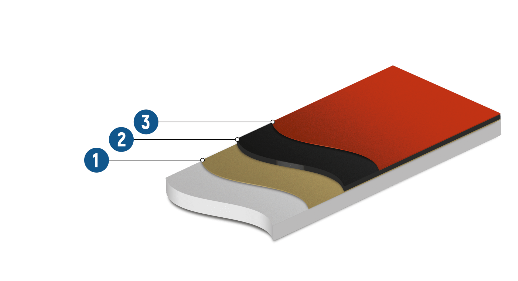

Theoretical consumption
Layer thickness
Componenty
PRIMING LAYER
(1)
0,2 kg/m2
0,2 kg/m2
Tetrapur 25 (concrete)
Tetrapur 25 A (asphaltic concrete)
BASE LAYER
(2)SBR Rubber mat
(2)SBR Rubber mat
Tetrapur 154
Granules SBR 1 - 4 mm
1,65 kg/m2
8 kg/m2
11 mm
TOP WEARING LAYER
(3)
Tetrapur134 / Tetrapur 135
Granules EPDM 0,5 - 1,5 mm
Rubber dust
1,2 kg/m2
0,8 kg/m2
Depends on the system viscosity
2 mm
CLOSING LAYER
Closing lacquer*
Line paint
Tetrapur 90
Tetrapur 91
0,25 - 0,3 kg/m2
0,02 - 0,03 kg/rm
as an option, to prevent the surface from abrasion and UV radiation, it is recommended to spray it twice with the PU lacquerNOTE: for installing the surfaces in UV sensitive colours like grey, blue, beige, violet etc. it is recommended to apply the UV stable binders at the top layer to avoid the change of colour tint.
