TETRAPUR ENZ III M
TETRAPUR ENZ IIIM

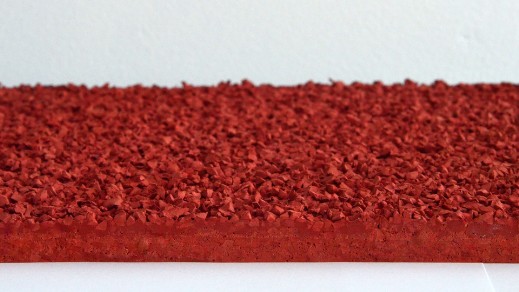

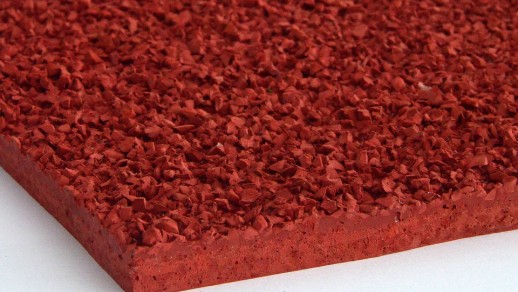

Coating made of full polyurethane, flexible, seamless, anti-slide, water impermeable, resistant to spikes and installed “in situ” (directly at the construction site).
Total thickness of the surface: 14 mm
Colour of the surface at customer`s request.
Colour of the surface at customer`s request.
Application:
- professional athletics tracks
- multi-purpose sports fields (optional)
- outdoor sports venues and recreation centers
The surface meets:
- technical parameters according to PN-EN 14877:2014 standard
- IAAF Class 1 Athletic Facility certificate № S-10-0119
- hygienic attestation issued by the National Institute of Hygiene
- tests on contents of trace elements of heavy metals

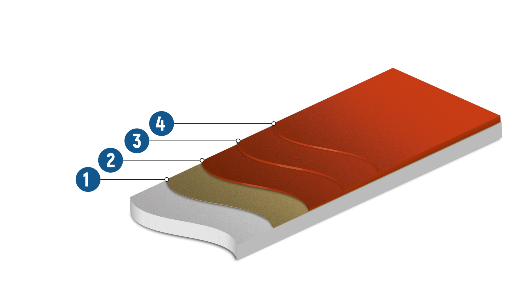

Components
Theoretical consumption
Layer thickness
PRIMING LAYER
(1)Primer
(1)Primer
0,2 kg/m2
0,2 kg/m2
Tetrapur 25 (concrete)
Tetrapur 25 A (asphaltic concrete)
BASE MAT
(2) (3)1st interlayer
(2) (3)1st interlayer
Tetrapur 137
Light granules EPDM 1 - 3,5 mm
Tetrapur 137
Light granules EPDM 1 - 3,5 mm
2,2 kg/m2
1,9 kg/m2
2,2 kg/m2
2 kg/m2
5 mm
5 mm
TOP WEARING LAYER
(4)Surfacing coat
(4)Surfacing coat
2,8 kg/m2
2,6 kg/m2
Tetrapur 136
Granules EPDM 1 - 3,5 mm
4 mm
CLOSING LAYERClosing lacquer*
Line paint
Line paint
Tetrapur 90
Tetrapur 91
0,25 - 0,3 kg/m2
0,02 - 0,03 kg/rm
* as an option, to prevent the surface from abrasion and UV radiation, it is recommended to spray it twice with the PU lacquer
NOTE: for installing the surfaces in UV sensitive colours like grey, blue, beige, violet etc. it is recommended to apply the UV stable binders at the top layer to avoid the change of colour tint.
